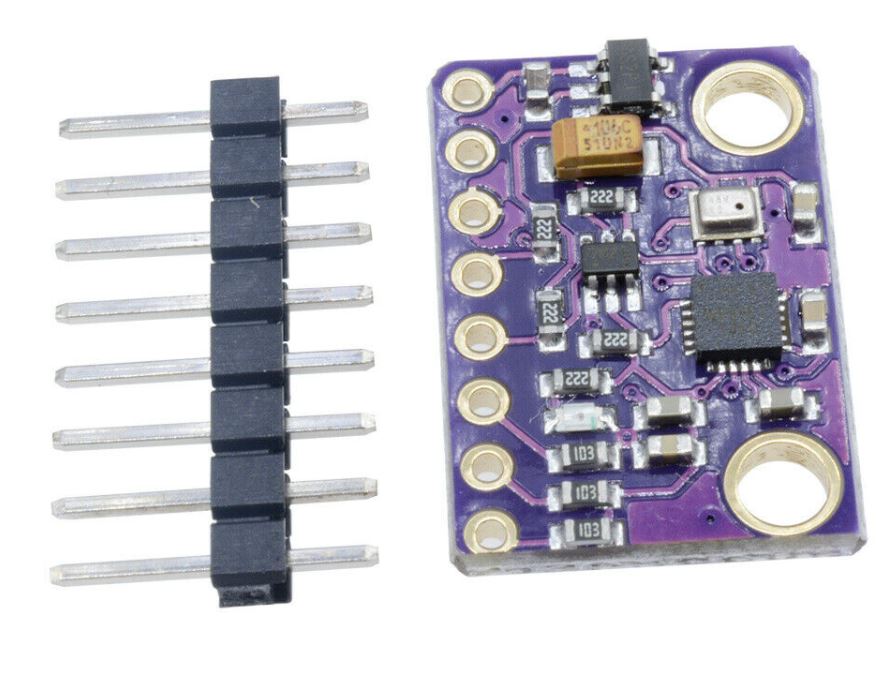

GY-91 MPU9250 Sensor Module
The GY-91 is a 10 degree-of-freedom (DoF) inertial measurement unit (IMU). This incredible small profile sensor houses an accelerometer and gyroscope in the MPU6050, a magnetometer in the AK8963, and an altitude (barometric pressure, temperature) sensor in the BMP280.
$17.95
Out of stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Description
Additional information
Q & A
The GY-91 MPU9250 Sensor Module is the company’s second-generation 9-axis MotionTracking device for smartphones, tablets, wearable sensors, and other consumer markets. The MPU-9250, delivered in a 3x3x1mm QFN package, is the world’s smallest 9-axis MotionTracking device and incorporates the latest InvenSense design innovations, enabling dramatically reduced chip size and power consumption, while at the same time improving performance and cost.
Improvements include supporting the accelerometer low power mode with as little as 6.4µA of and it provides improved compass data resolution of 16-bits (0.15 µT per LSB). The full-scale measurement range of ±4800µT helps alleviate compass placement challenges on complex PCBs
Features
- Chip: MPU-9250 + BMP280
- Power supply: 3-5v (internal low dropout regulator)
- Communication: standard IIC / SPI communications protocol
- Chip built 16bit AD converter, 16-bit data output
- Gyroscopes range: ± 250 500 1000 2000 ° / s
- Acceleration range: ± 2 ± 4 ± 8 ± 16g
- Magnetic field range: ± 4800uT
- Pressure range: 300-1100hPa
- Using Immersion Gold PCB, machine welding process to ensure quality
- 2.54mm pin pitch
- Module size: 2.05cm x 1.43cm
Package Included:
1 X GY-91 MPU9250 Sensor Module
Development Resources: demo codes, schematics, datasheets, etc
Reference for Arduino and reference to all matters
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
