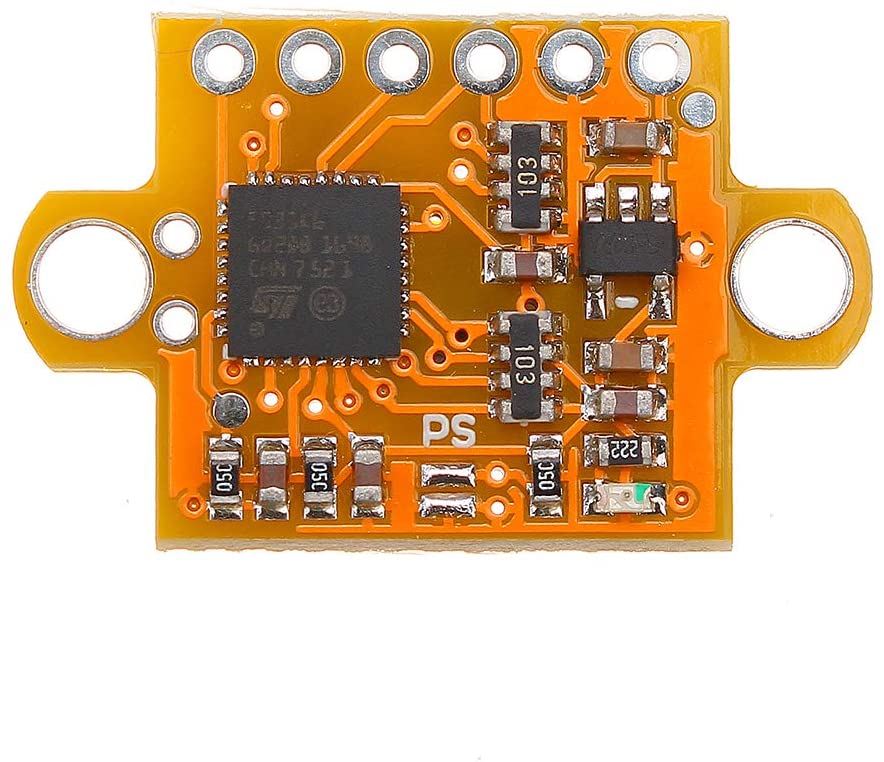

GY-56 Infrared Laser Ranging Module with Serial port or IIC Communication
Note: Module I / O is a TTL level that can be connected directly to the serial port of the MCU. It can be directly connected to the chip such as PL2303, CH340, FT232, but it can not be directly connected to the computer nine-pin serial port.
4 in stock
4 in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Specification:
GY-56 Infrared Laser Ranging Module with Serial port or IIC Communication.
- Measurement range: 0-2 meters
- Response frequency: 22ms
- Operating Voltage: 3-5 V
- Working current: 15-35 mA
- Working temperature: -20°-85°
- Storage temperature: 40°-125°
The GY-56 Infrared Laser is a low cost digital infrared range sensor module. Operating voltage 3-5v, small power consumption, small size, easy installation. Its working principle is that the infrared LED emits light and is irradiated. After the object, the return light is received by the MCU and the MCU calculates In this module, there are two ways to read data, namely Serial UART (TTL level) + IIC (2 lines) mode.
The baud rate of the serial port is 9600bps and 115200bps configurable. There are continuous, inquiries output in two ways, you can power off the save settings.
Provide Arduino, 51, stm32 microcontroller communication program. GY-56 can set the upper and lower limit distance alarm value, switch output, In the set interval, there is a block of the measured object and a high level is directly output. Under the IIC mode, you can set different internal IIC addresses if necessary.
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.
Development Resources: demo codes, schematics, datasheets, etc.
Laser information from WikipediaÂ
Reference for Arduino and reference to all matters.
KY-008 Laser 650nm 5V Laser Diode Laser Transmitter
The KY-008 Laser transmitter module consists of a 650nm red laser diode head and a resistor. Handle with caution, do not look directly into the laser head. Product Description 100% brand…
| Weight | 0.010 kg |
|---|---|
| Dimensions | 8 × 5 × .3 cm |
