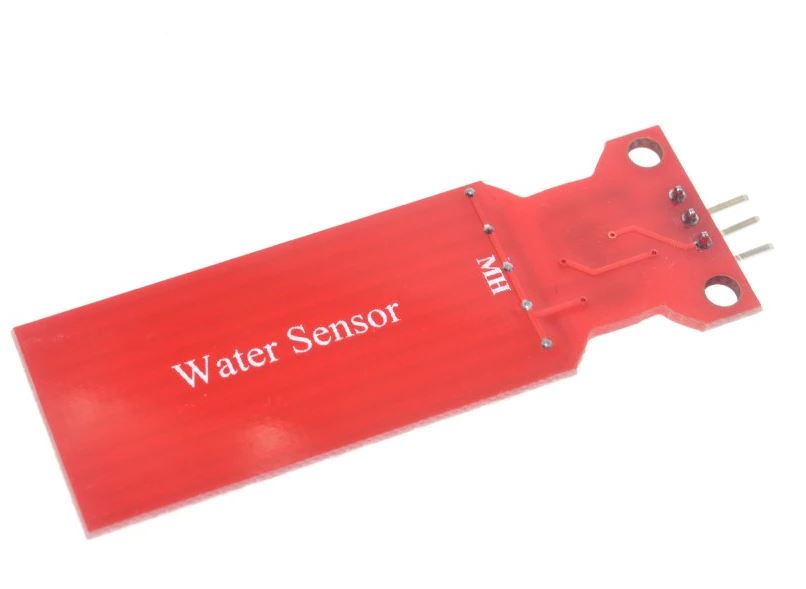

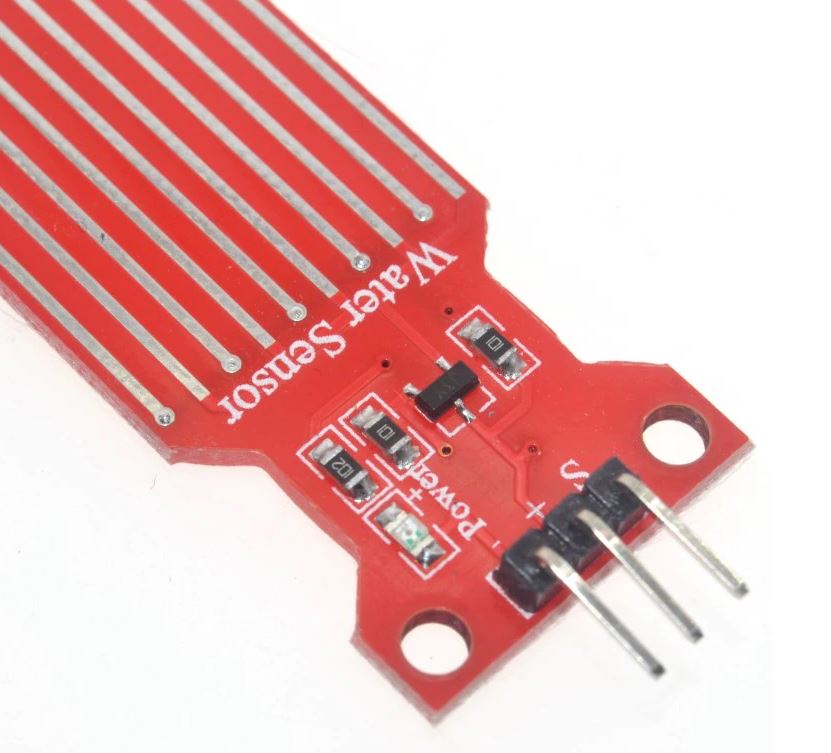

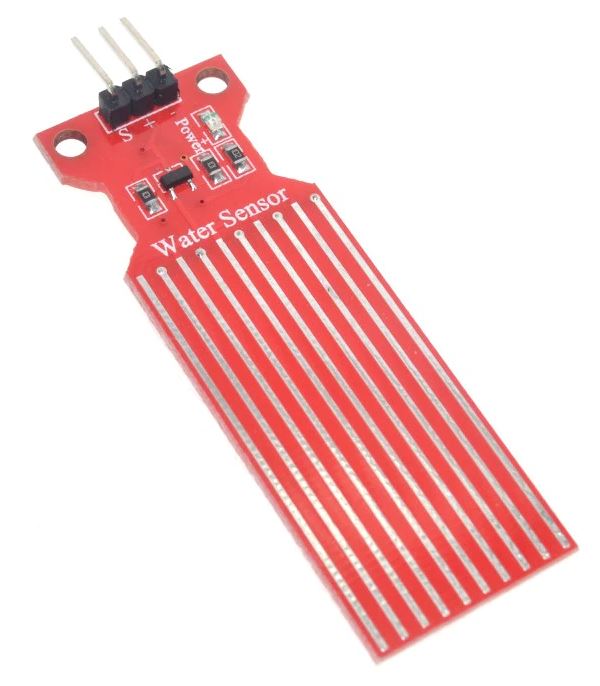

Water Level Sensor for Arduino
The Water Sensor is a simple, easy-to-use, cost-effective water level/droplet identification and detection sensor. It uses a series of exposed parallel wire traces to measure the size of the water drop/water volume to determine the water level.
22 in stock
22 in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
This Water Level Sensor for Arduino compatible water level sensor is straightforward to use. The higher cost of the water/water droplets recognition sensor measures its track droplets/water size by having a series of parallel lines exposed wires to determine the water level. Water to easily convert analogue values of analogue signals, the output can be directly read development board, to the effect level of the alarm
Features:
- Easily measure water levels and convert to an analogue signal
- Cost-effective high level/drop recognition sensor
Specifications:
- Working voltage: DC3-5V
- Working current: less than 20mA
- Detection area: 40mm x 16mm
- Production process: FR4 double-sided spray tin
- Working temperature: 10℃-30℃
- Working humidity: 10%-90% non-condensing
- Sensor types: analogue output.
- Sealing interface definition: 1-foot signal, 2 feet, the power is 3 feet.
- Service life: about one year(surface plating processing, strengthened the electrical conductivity and corrosion resistance).
- Product weight: 3.5g
- Product size: 62mm x 20mm x 8mm
Package Contains:
1x Water Level Sensor for Arduino
Development Resources: demo codes, schematics, datasheets, etc.
Reference for Arduino and reference to all matters
The Geek Pub: ARDUINO WATER LEVEL SENSOR TUTORIAL
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
Sensor Shield V4.0 compatible with Arduino
Sensor Shield V4.0 is compatible with most Arduino boards that support the standard header layout, including Uno, Leonardo, and Mega. It provides a convenient way to connect various sensor modules.
| Weight | .005 kg |
|---|---|
| Dimensions | 6.2 × 2 × .8 cm |
