Description:
UNO R3 ProtoShield With SYB-170 Mini Breadboard Base
- Prototype Size:7cm x 5.5cm x 2cm
- SOIC place for IC
- 1 reset button, 1 general use button, and 2 LED circuits can be used directly.
- Mini breadboard size: 4.4 x3.4 x1cm
- The mini breadboard has 170 tie points.

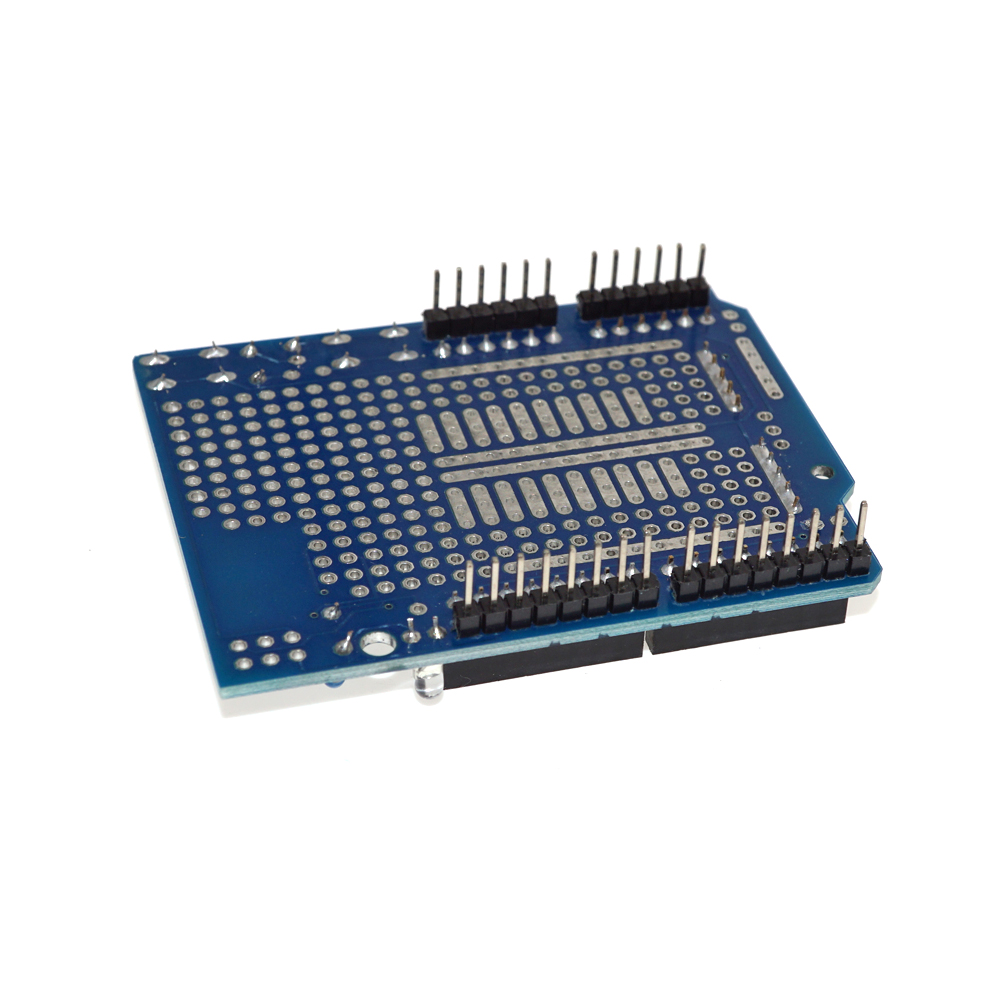

This UNO R3 ProtoShield With SYB-170 Mini Breadboard Base is designed for building a prototype circuit. Components can be soldered directly onto the board and the board can be connected to the circuit through the above mini breadboard. The breadboard and circuit board are connected to each other by Double-sided adhesive. It should be noted that the breadboard and circuit board are disconnected when sold. ProtoShield prototype expansion board carries two LED and two-button circuits, all of which are ready for use. All pins and power supply have been extracted, making the board the best match.
Arduino board designs
Use a variety of microprocessors and controllers. The boards are equipped with sets of digital and analogue input/output (I/O) pins that may be interfaced to various expansion boards (‘shields’) or breadboards (for prototyping) and other circuits.
The boards feature serial communications interfaces, including Universal Serial Bus (USB) on some models, which are also used for loading programs.
The microcontrollers can be programmed using the C and C++ programming languages, using a standard API which is also known as the “Arduino language”.
In addition to using traditional compiler toolchains, the Arduino project provides an integrated development environment (IDE) and a command-line tool (Arduino-CLI) developed in Go.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.
Development Resources: demo codes, schematics, datasheets, etc.
Reference for Arduino and reference to all matters.
