FT232RL Chip USB To TTL USB to TTL Program Compact Verison

USB to TTL Program Compact Verison. 23 x 17mm  2.0 compliant with full-speed 12Mbps USB Mini and is an excellent way to connect TTL serial devices to a PC

$6.50

1 in stock

Add to Wishlist
This item: FT232RL Chip USB To TTL USB to TTL Program Compact Verison

1 in stock

$6.50
$6.50
$7.95
FT232RL USB To 6pin Serial Adapter2
$7.95
CH340E MSOP10 USB to TTL module
$4.95
USB TO TTLRS485 dual
$7.95

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

SKU: OKY3409-1
Description
Additional information
Q & A

FT232RL Chip USB To TTL USB to TTL/UART headers on your microcontroller or Raspberry Pi. and is an excellent way to connect TTL serial devices to a PC

Specifications:
  • Support 3.3V, 5V
  • Chipset FT232RL
  • LED display of communication data
  • Machine PLC data reading and writing
  • Monitoring data read and write and PTZ  control
  • USB power has over current protection, using 500MA self-restore fuse
  • RXD/TXD transceiver communication indicator

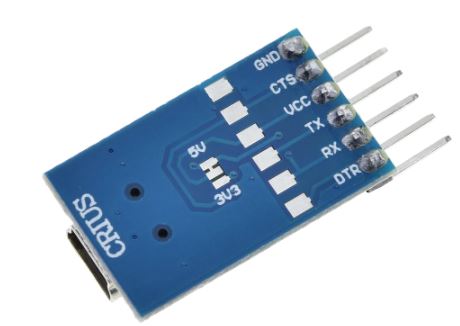

  • Pin definition: DTR, RXD, TX, VCC, CTS, GND
  • Pitch: 2.54mm
  • Colour: Blue

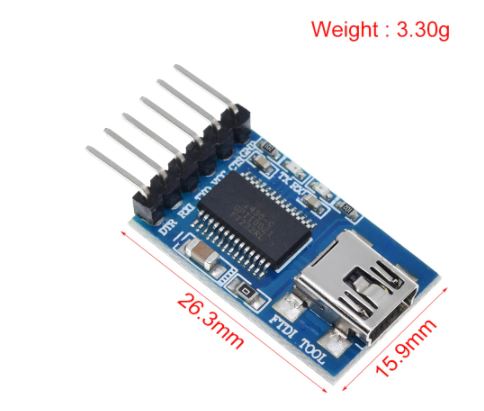

  • Module size:( L x W ) 23 x 17mm



Package includes:

Check out our On Sale and Clearance Items

Development  Resources: Demo Codes, Schematics, Datasheets, Etc



Tempero systems Hackaday     Hackaday serves up Fresh Hacks Every Day from around the Internet.

tempero systems-InstructablesInstructables is a community for people who like to make things. Explore, share, and do your next project with us!

Tempero Systems-Github     Where the world builds software

tempero systems-Raspberry Pi    Raspberry Pi Foundation: What would you like to make today?

tempero systems-Arduino    Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.

tempero systems-Wikipedia     Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.



Notes:

1. There may be slight size deviations due to manual measurement and different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different Photography lights, angles, and display monitors.

Weight 0.008 kg
Dimensions 6 × 2 × 1.5 cm
