CH552 Mini Core Board
CH552 Mini Core Board is an enhanced E8051 kernel Microcontroller compatible with the MCS51 Instruction set
$5.95
3 in stock
This item: CH552 Mini Core Board
3 in stock
$5.95
$5.95
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Description
Additional information
Q & A
CH552 Mini Core Board is an enhanced E8051 kernel Microcontroller compatible with the MCS5 Instruction set. 79% of its Instructions are single-byte single-cycle, and the average instruction speed is 8 ~ 15 times faster than the standard MCS51.
CH552Â supports up to 24MHz system frequency, built-in 16K program ROM 256 bytes of internal iRAM and 1K bytes of in-chip xRAM; xRAM supports DMA direct memory access.
CH552Â has built-in ADC analogue-to-digital conversion, touch key capacitance detection, three groups of timer and signal capture and PWM, dual asynchronous serial port, SPI, USB device controller full-speed transceiver and other function modules.
The CH552 core board supports three development modes
1. Keil provides the lighting example, RTXTiny2 example
2. Arduino provides lighting routines and environment configuration instructions
3. SDCC provides lighting example
More examples can be found in reference 04-WCH_EVT
CH552 core board program burning Download
1. Support USB Download, no burning device
2. Supports serial port Download
3. The Keil example supports holding down the P36 key, clicking the RST key, and releasing the P36 key 0.5 seconds later to enter the burning mode

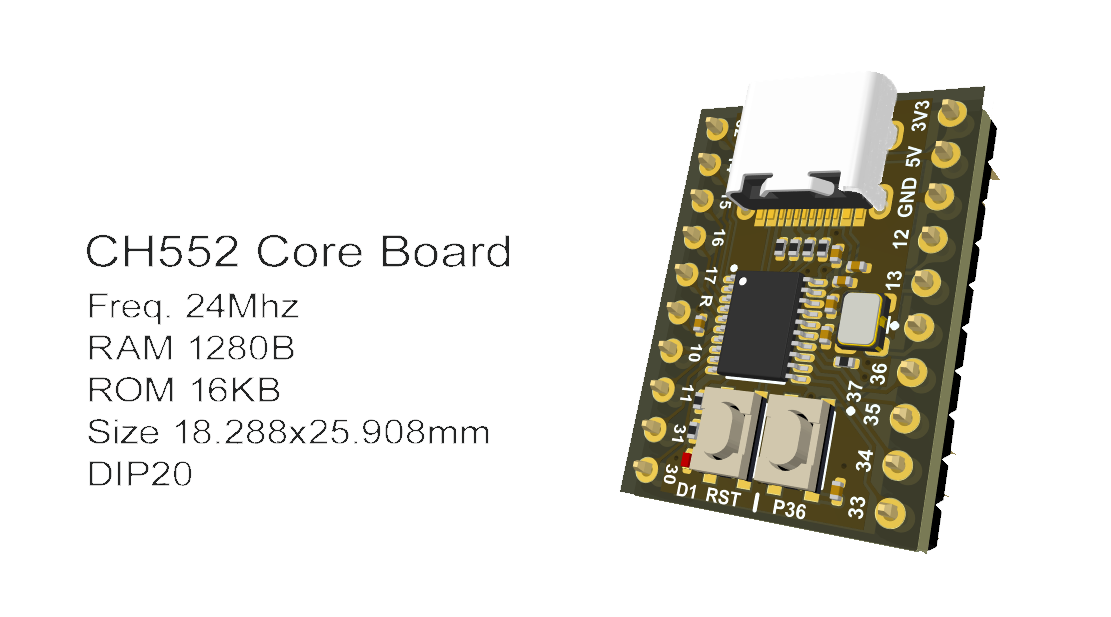

Specification:
- Freq 24mhz
- RAMÂ 1280B
- ROM 16KB
- Size 19x26mm
- DIP20
Package included: 1 x CH552 Mini Core Board and headersÂ
Check out our On Sale and Clearance ItemsÂ
Development Resources: Demo Codes, Schematics, Datasheets, etc
Datalink/Download Link Github
https://github.com/WeActTC/WeActStudio.CH552CoreBoard.git
   Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
   Where the world builds software
  Raspberry Pi Foundation: What would you like to make today?
  Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
| Weight | 0.010 kg |
|---|---|
| Dimensions | 3 × 2 × 1 cm |
| Model | 16MB, 2MB, 4MB, 8MB |
