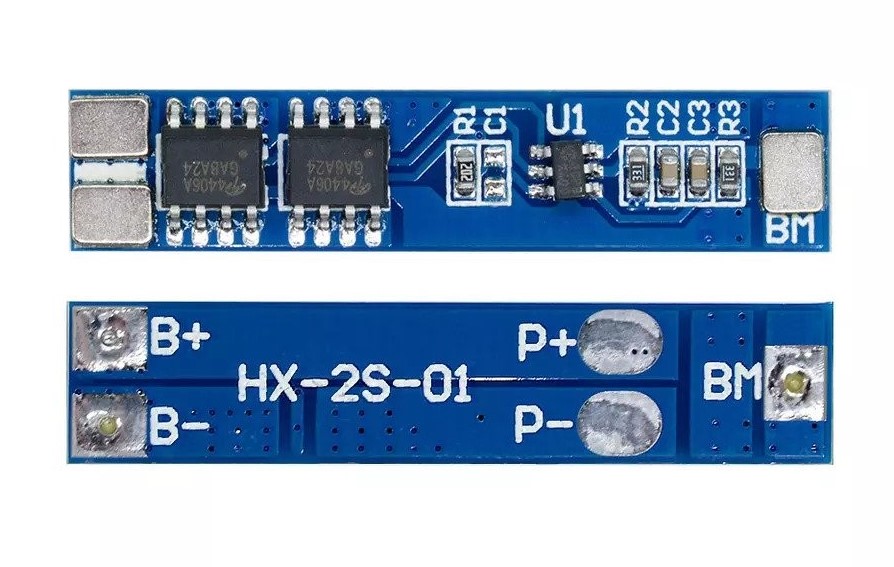

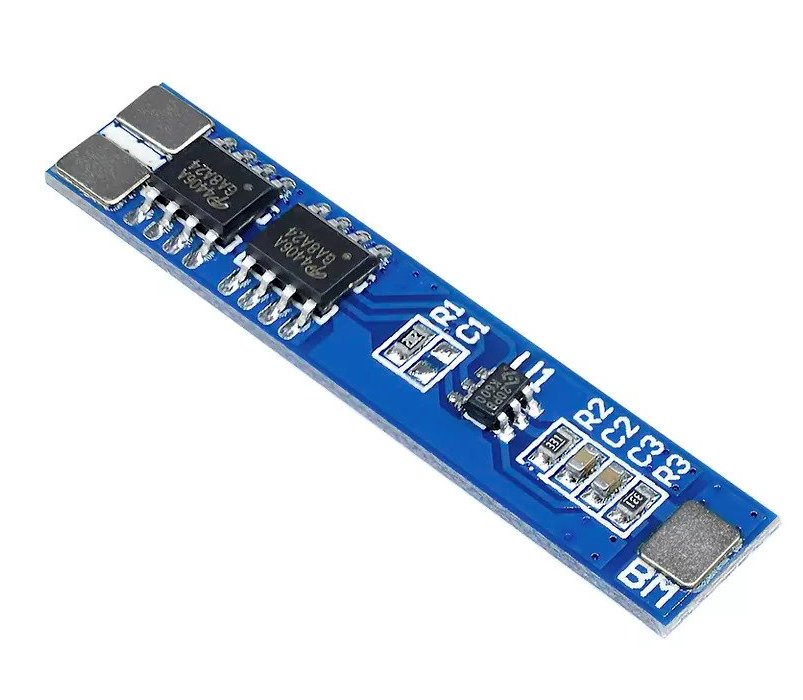

2S 5A BMS HX-2S-01 Li-ion Battery Protection Module
 2S 5A BMS HX-2S-01 7.4V 8.4V 18650 Charger Protection Board Module is a small PCB-mounted Li-ion Lithium Battery charger protection module
73 in stock
73 in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
2S 5A BMS HX-2S-01 Li-ion Battery Protection Module is a small PCB mounted Lithium Battery charger protection module. This small and smart BMS module has features like Short circuits, Overcharge, Over-discharge, and Over-current protection.
It is straightforward to install and convenient for all your DIY portable projects.
 2S 5A BMS HX-2S-01  has a Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit). MOS transistors can control the battery charge and discharge.
Therefore a BMS may also feature a precharge system allowing a safe way to connect the battery to different loads and eliminating the excessive inrush currents to load capacitors.
Protections:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Dissipation Power:Â 18650 Li-Ion Battery charging BMS
Features:
- Overcharge Detection Voltage: 4.25-4.35V±0.05V
- Over-Discharge Detection Voltage: 2.3-3.0V±0.05V
- Maximum Working Current: 5A
- Instantaneous Current: 7A
- Operating Temperature: -40-50℃
- Static current: less than 10uA
- Internal Resistance: Less than 100m Ω
- Size: Approx.41x8x2.2mm

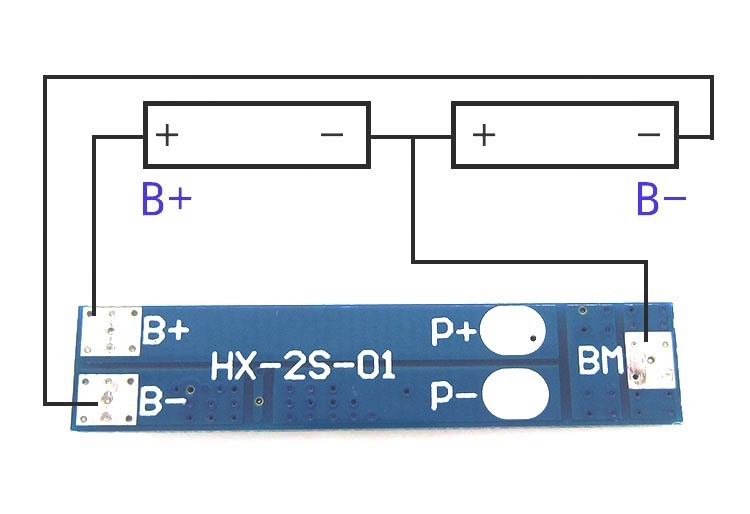

Battery Setup:
- B+ B-: The interface of the battery core
- P+ P-: The connector of the battery board
- BM: The connection point between the batteries
- B+: Battery V+ Positive
- B-: Battery V- Negative
- P+: Output / Charging V+
- P-: Output / Charging V-
Package included:Â 1 x 2S 5A BMS HX-2S-01 Li-ion Battery Protection Module
Check out our On Sale and Clearance ItemsÂ
Development Resources: demo codes, schematics, datasheets, etc
   Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
   Where the world builds software
  Raspberry Pi Foundation What would you like to make today?
  Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
| Weight | 0.002 kg |
|---|---|
| Dimensions | 4.5 × 1 × .3 cm |
