1.3-inch IPS TFT LCD colour module SPI
IPS full view panel, super-wide visual range Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display which provides a rich STM32, C51 and MSP430 sample program.
3 in stock
3 in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
1.3-inch IPS TFT LCD colour module SPI, 240×240 HD resolution, with embedded controller, communicating via SPI interface.
Specifications:Â
- SIZE 1.3inch
- Display Mode Normally black IPS
- Display Format Graphic 240 RGB x 240 Dot-matrix
- Input Data SPI interface
- Drive IC ST7789VW

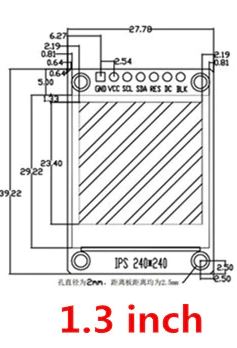

- Dimensional outline 27.78(W) x 39.22 (H) x 3.0+/-0.1(T)mm
- Resolution 240RGB x 240 Dots
- LCD Active area 23.4 (W) x 23.4 (H)
- Dot pitch 0.0975(H) x 0.0975(V) mm
- Viewing Direction All View
- Operating Temperature -20～70°C
- Right angle and Vertical header Pins
Pin Descriptions:
- PIN No Symbol Description
- 1Â GNDÂ Ground
- 2Â VCCÂ Power 3.3V
- 3Â SCLÂ Serial clock pin.
- 4Â SDAÂ Serial data input
- 5 RES LCM Reset pin This pin is reset signal input.
- 6Â DCÂ Data/Command Control
- 7Â CSÂ Chip Select
- 8Â BLKÂ Backlight control pin
Note: LCD comes with Pins Not Soldered to Board
Package includes: 1 x 1.3-inch IPS TFT LCD colour module SPI With Right angle and Vertical header Pins
